  • LED Lighting PCB Depaneling,SMTfly-3

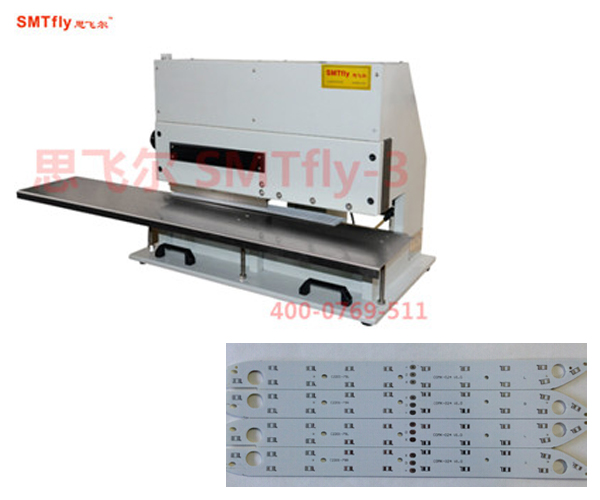

LED Lighting PCB Depaneling,SMTfly-3

LED Lighting PCB Depaneling,SMTfly-3

  • Product description: LED Lighting PCB Depaneling,SMTfly-3
  • INQUIRY
LED Lighting pcb depaneling,SMTfly-3
LED Lighting PCB Depaneling,SMTfly-3Feature:
1.Cut any length metal board  more safety and easily.
2.Separates long boards directly,without turn direction .
3.Separates boards up to 2.0mm  thick  Metal Board
4.Shears boards safely with parts as close as 1 mm to the score line,including ceramic capacitors
5.Operator foolproof! Panels cannot be inserted into the  knives except on the score line
6.Handles high components up to50mm
7.Bow waves that can occur with round knives are avoided
8.Easy adjusting of distance between knives

LED Lighting pcb depaneling,SMTfly-3
LED Lighting PCB Depaneling,SMTfly-3 Specification:
Model:                               CWVC-3
The Longest Minimize:      unlimted
Size:                                   780mmx500mmx620mm
Minimize thickness:           0.3-3.5mm
Machine Net Weight(No table):   185  KG
The operating air pressure:            0.6Mpa ~0.8Mpa.
Voltage:                              220V  or 110V

Our Service:
# 1 day delivery
# 24 hours fast response
# Largest manufactory in South China
# 100% responsible for quality
# 14 years experience
# Free sharpening for blades within 3 months
