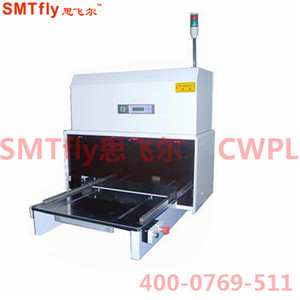

PCB Punching Machine, SMTfly-PL


PCB Punching Machine, SMTfly-PL Features:

1) Depaneling PCB/FPC by means of punching dies, to avoid micro-cracks
caused by manual.
2) Die toolings is changeable
3) Easy set up of punching dies
4) Loading and unloading PCBs is convenient
5) Easy operation, has safe protection system
6) Air cylinder driven


PCB Punching Machine, SMTfly-PL Specification:

Description

Punching machine

Model

SMTfly-PL

Working area

460*320mm

Working pressure

0.45-0.7Mpa

Machine dimension

930*880*1230mm

Cutting precision

±0.05mm

Cycle time

7.5s/cycle

Weight

650KG

Output

8T

PCB/FPC thickness

0.08-3.5MM

PCB/FPC material

FPC, FR1, FR4, CEM-1, CEM-3, MCPCB

Cutting mode

Punching

Punch fixture

Die tooling(mold)

Working Property

LCD display, Automatically records the number of processed products, automatic punching

Transmission port

International standard

Instruction system

International standard instruction system

Operation Language

English

Stroke

50MM

Mold height

130MM

Shut height

80MM

Flat area

530*320MM

Flat thickness

38MM

Power

380/220V

Fuse

3A

Composition

Punching machine, Air cylinder, Ottomans, etc
