  • PCB Depaneler, SMTfly-1

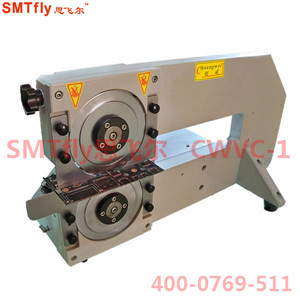

PCB Depaneler, SMTfly-1


PCB Depaneler Machine, SMTfly-1 Features:

Minimize the shearing stress to avoid micro-cracks of the solder joints
Guiding device of the "V-CUT" of the PCB
Ball bearing slideways for easy setting of the PCB edge guides
Ball bearing slideways for easy setting of the height of the tabletop
3 easy operating modes: Manual by handwheel,semi-automatic
by pressing the start button or fully-automatic by continuous running
Cutters can be re-grinded
The shape of the cutter can be customer made


PCB Depaneler Machine, SMTfly-1 Specification:

Max Cutting Length 330mm
PCB Board Material FR1, FR4
PCB Thickness 1.0-3.5mm
Cutting Speed 0-40mm/s
Machine Weight 48kgs
Machine Dimension 63*27*32mm

Watch PCB Depaneler Machine Video
