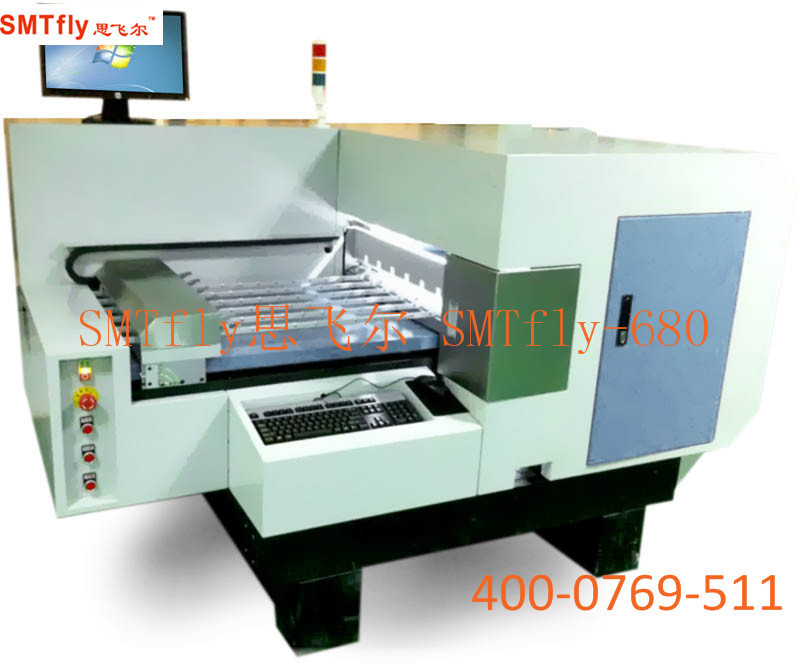

CNC V-Cut Machine, SMTfly-680

CNC V-Cut Machine, SMTfly-680 Feature:

1. Microsoft Windows XP based software for data processing and parts management.
2. Heavy cutting, high precision and high stability without burr. Suitable in Single/Double sided, Multi-layer, Rigid-Flex PCB, Aluminum PCB, Copper PCB, and Non-metal PCB.
3. Large working table: 630mm x 680mm. PCB thickness: 0.3mm ~ 3.2mm.
4. Use HY1400 motion control card mechanical control, to obtain better stability, safer,low breakdown rate and easy maintenance.
5. Cutter position and depth use graphical numerical control to maintain high accuracy, easy to operate and easy to adjust.
6. Diamond cutter is used.
7. A high performance dust extraction system is recommended (optional) to maintain


CNC V-Cut Machine, SMTfly-680 Specification:

Item

Parameter

Remark

Size

1200 × 2280 ×1585mm

L*W*H

Working Height

920±50mm

Weight

3000kg

Power Supply

AC 220V,50/60HZ

Capacity

3.0KW

Air Pressure

5kg/cm2

Working Platform

Max:680mm*630mm

Thickness

0.3~3.2mm

Blade spec

Outer Diaφ120mm Inner Diaφ25.4mm

Positioning Dowel

Dia:2MM7PCS

Min Distance between the first V score line & Pin hole

4.5MM

Blade thickness

2mm

V-groove Residual thickness accuracy

±2mil

V-groove Pitch accuracy

±2mil

V-groove Parallel precision

±2mil

Blade Cutting Speed

6,000R.P.M.

Cutting Speed

0~50m/min

Displace Speed

Max 70M/MIN

Dust Collector

2in plumbing 3.5KW
