  • PCB Routing Machine, SMTfly-3A

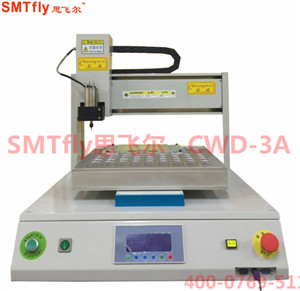

PCB Routing Machine, SMTfly-3A

PCB Routing Machine, SMTfly-3A Features:
1.Desktop single bench cutting machine, Speeds of up to 100mm/s, positioning speed 500mm/s cnc router
2.Cut continuously without interruption during loading and unloading
3.High quality shaft system allows the system to quickly ramp, reduce the period of time, Improve productivity, maintaining high    precision cnc router machine cnc router machine cnc router machine cnc router machine
4.Use high-quality hardware to ensure high rigidity and high performance All screws are protected from dust and dirt from entering    to improve the life and performance of the shaft

5.Use high-quality hardware to ensure high rigidity and high performance


PCB Routing Machine, SMTfly-3A Specification:

Motor drive system Servo / stepper motor
Spindle speed 50000r/s
Cutting performance 500mm/s
Drive system repeatability ±0.02mm
Cutting speed Max 100mm/S(depends on PCB material and cutting quality)
Resolution ±0.01mm
Configuration X,Y,Z 3 axis
Repeatability <0.1mm
PCB positioning fixture
Load and unload way Manually
PCB thickness 0.4mm-4mm
Working area 400*400mm(could be customized made)
Spindle motor power 0.5KW
Spindle motor speed 50000r/m
Spindle motor cooling Air-cooled
Machine dimension 650*550*615mm
Weight 73KG

Watch PCB Routing Machine Video
