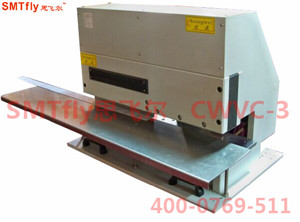

V-CUT PCB Separator Machine,SMTfly-3

Product description: V-CUT PCB Separator Machine,SMTfly-3
INQUIRY

V-CUT PCB Separator Machine,SMTfly-3 Feature:
●Cut any length metal board more safety and easily.
●Separates long boards directly,without turn direction .
●Separates boards up to 2.0mm thick Metal Board
●Shears boards safely with parts as close as 1 mm to the score line,including ceramic capacitors
●Operator foolproof! Panels cannot be inserted into the knives except on the score line
●Handles high components up to50mm
●Bow waves that can occur with round knives are avoided
●Easy adjusting of distance between knives

PCB separator,CWVC-3

V-CUT PCB Separator Machine,SMTfly-3 Specification:
Model: SMTfly-3
The Longest Minimize: unlimted
Size: 780mmx500mmx620mm
Minimize thickness: 0.3-3.5mm
Machine Net Weight(No table): 185 KG
The operating air pressure: 0.6Mpa ~0.8Mpa.
Voltage: 220V or 110V

Our Service:
# 1 day delivery
# 24 hours fast response
# Largest manufactory in South China
# 100% responsible for quality
# 15 years experience
# Free sharpening for blades within 3 months
