PCB Router-PCB Routing Equipment,SMTfly-LT

Product description: PCB Router-PCB Routing Equipment,SMTfly-LT
INQUIRY

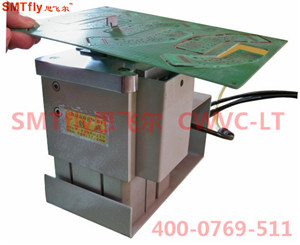

PCB Routing Equipment,CWV-LT

PCB Router-PCB Routing Equipment,SMTfly-LT Feature :

1.Upper blade and lower blade are made of special material and durable.
2.Minimize the shearing stress to avoid micro-cracks of the soldering joint.
3.It is applicable for complex structure of double-panel, with different
thinkness of cutter can fit to different width of V-groove.
4.Easy and convinence to change the cutter .
5.Reliable operate and high efficinence for Pneumatically driven ,footswitch
control.
6. Supporting PCB with four supporting pin to keep PCB lever to improve
the quality of cutting ,otherwise, easy to move the supporting pin .
7. The thickness and the height for cutter can be custome made .
8.Easy to fetch and give for waste box.

PCB Routing Equipment,CWV-LT

PCB Router-PCB Routing Equipment,SMTfly-LT Specification:
Operating pressure (bar): 4～6
Cylinder bore(mm): Φ80
Cylinder stroke(mm) : 10
Cylinder Output(kgf): 181-272
Max.Cutting thickness(mm): 2.50
Max.Cutting width(mm): 8
Max.Accessary height(mm): 25.00
Weight(kg): 5.7

Our Service:
# 1 day delivery
# 24 hours fast response
# Largest manufactory in South China
# 100% responsible for quality
# 14 years experience
# Free sharpening for blades within 3 months
