LED PCB Boards PCB Separation,SMTfly-5L

LED PCB Boards PCB Separation,SMTfly-5L

  • Product description: LED PCB Boards PCB Separation,SMTfly-5L
  • INQUIRY

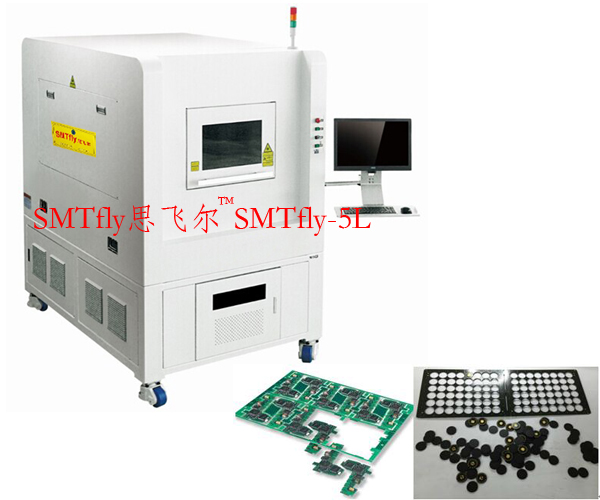

LED Lighting pcb depaneling,SMTfly-5L
LED PCB Boards PCB Separation,SMTfly-5LFeatures:
More quick and easy, shorten the delivery time;
High quality 、no distortion、surface clean& uniformity;
Gathering the CNC tech、laser tech、software tech…High accuracy、High speed

LED Lighting pcb depaneling,SMTfly-5L
LED PCB Boards PCB Separation,SMTfly-5LDescription:
Neat and smooth edge, no burr or overflow
Wide application range, including FPC exterior cutting, profile cutting, drilling, opening window for covering, etc.
Laser wavelength:  355nm
Rated power:  10W/12W/15W/18W@30KHz
Galvanometer working field Per One Process: 40 × 40mm
Power consumption for the hole machine:  2KW


LED Lighting pcb depaneling,SMTfly-5L


Cutting Application:

FPC and some relative materials;

FPC/PCB/ Rigid-Flex PCB cutting, Camera module cutting.


LED PCB Boards PCB Separation,SMTfly-5L Specification:

Laser:                           Q-Switched diode-pumped all solid-state UV laser
Laser Wavelength:        355nm
Laser Power:                 10W/12W/15W/18W@30KHz
Positioning Precision of Worktable of Linear Motor:                ±2μm
Repetition Precision of Worktable of Linear Motor:                 ±1μm
Effective Working Field:             400mmX300mm(Customizable)
Laser Scanning Speed:                  2500mm/s (max)
Galvanometer Working Field Per One Process:                        40mmх40mm

Our Service:
# 1 day delivery
# 24 hours fast response
# Largest manufactory in South China
# 100% responsible for quality
# 14 years experience
# Free sharpening for blades within 3 months
