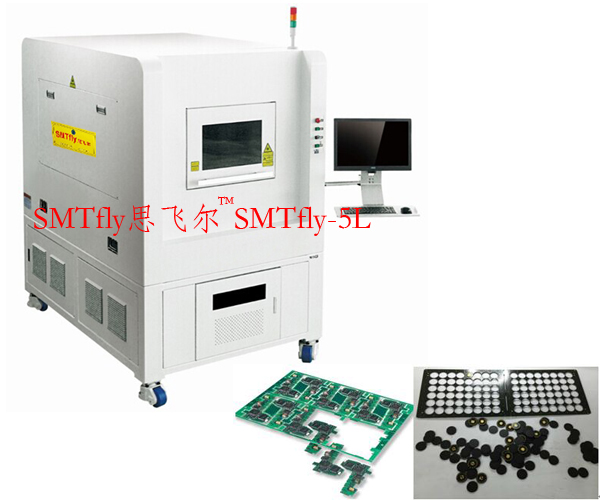

UV Laser Circuit Boards PCB Separator,SMTfly-5L

UV Laser Circuit Boards PCB Separator,SMTfly-5L

  • Product description: UV Laser Circuit Boards PCB Separator,SMTfly-5L
  • INQUIRY
Power pcb depaneling

UV Laser Circuit Boards PCB Separator,SMTfly-5L Features:

More quick and easy, shorten the delivery time;
High quality 、no distortion、surface clean& uniformity;
Gathering the CNC tech、laser tech、software tech…High accuracy、High speed

Power pcb depaneling

UV Laser Circuit Boards PCB Separator,SMTfly-5L Description:


Neat and smooth edge, no burr or overflow
Wide application range, including FPC exterior cutting, profile cutting, drilling, opening window for covering, etc.
Laser wavelength:  355nm
Rated power:  10W/12W/15W/18W@30KHz
Galvanometer working field Per One Process: 40 × 40mm
Power consumption for the hole machine:  2KW


Power pcb depaneling


UV Laser Circuit Boards PCB Separator,SMTfly-5LCutting Application:

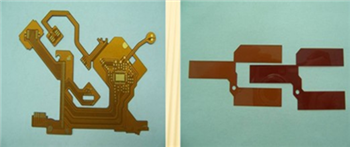

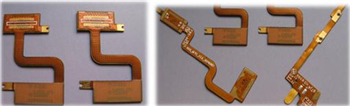

FPC and some relative materials;
FPC/PCB/ Rigid-Flex PCB cutting, Camera module cutting.

UV Laser Circuit Boards PCB Separator,SMTfly-5L Specification:


Laser:                           Q-Switched diode-pumped all solid-state UV laser
Laser Wavelength:        355nm
Laser Power:                 10W/12W/15W/18W@30KHz
Positioning Precision of Worktable of Linear Motor:                ±2μm
Repetition Precision of Worktable of Linear Motor:                 ±1μm
Effective Working Field:             400mmX300mm(Customizable)
Laser Scanning Speed:                  2500mm/s (max)
Galvanometer Working Field Per One Process:                        40mmх40mm
