  • High Speed LED Cutting Machine,SMTfly-5

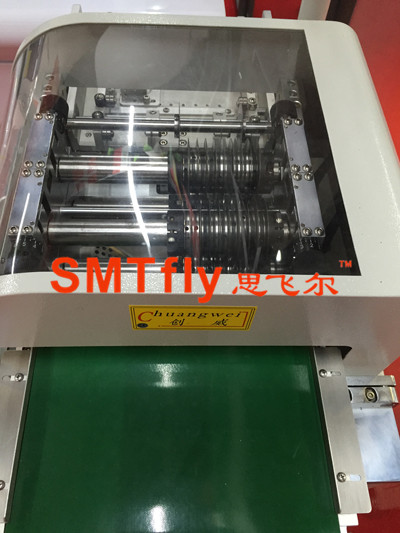

High Speed LED Cutting Machine,SMTfly-5

High Speed LED Cutting Machine,SMTfly-5

  • Product description: High Speed LED Cutting Machine,SMTfly-5
  • INQUIRY
High Speed LED Cutting Machine,SMTfly-5 Features:
1.It can cut many boards with multiple sets of knives work at the same time.
2.The knife flywheel is adjustable as a whole from 0 to 5mm
3.The distance between knives is regulable as well, satisfy to cutting the single PCB width from 15mm-20mm
4.The blade is made of Japan imported high speed and high precision steel material, which is durable and have a long service life.
5.It is convenient to adjust the cutting speed through rotary knob
6. No limits of the cutting length.
7.Thickness range of PCB: 0.8-3.5mm
8. With a conveyor belt line, the separated PCB can be send out directly to reduce pick- and-place.
9.The machine adopts multiple blade to separate boards with simple operation and high efficiency.

10. It can connect the production line to separate the PCB, fitted for batch production.

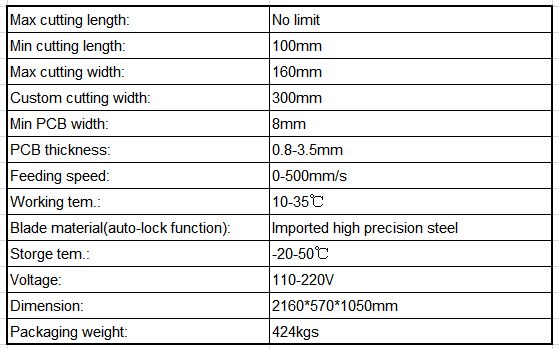

High Speed LED Cutting Machine,SMTfly-5 Specification:
