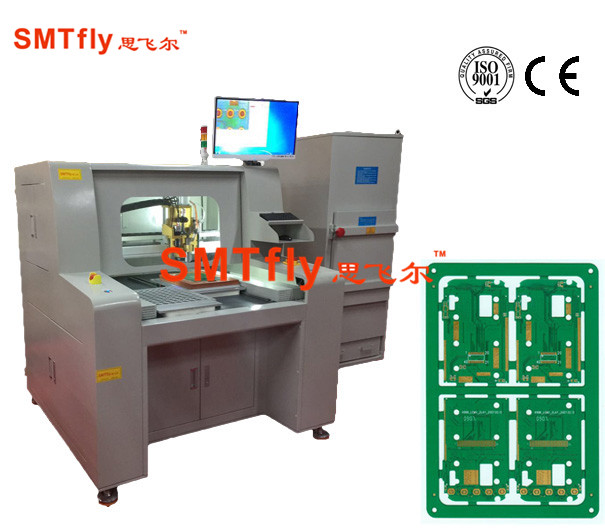

PCB Depaneling Router for Mobile Phone

Application:

For milling joints connection PCB boards depaneling.

Used for all electronic industries covering power supply, computer, mobile phone, household appliance, automotive electronics, wires & connector...

FR1 FR4 MCPCB Printed Circuit Board Router 0.02mm Manipulator Repeatability


Features:

  • Solution for stress free depanelization
  • Fixture-based highly efficient dust vacuum system
  • Clean and precise depanelization for densely populated PCBs
  • User-friendly operation
  • Extended bit life by manual router bit depth adjustment
  • Improved tact time
  • Low maintenance required
  • Reasonable price
  • Calibration free linear robot

Specification:

Model CW-F04
Standard working area 450*350mm
Power 220V, 4.2KW
Manipulator Repeatability ±0.02mm
Resolution ±0.01mm
Board Positioning Dual workstation with nest fixture or pin fixture
Panel Location Located by tooling holes or edges of PCB
Loading Manual
Unloading Manual
Panel Size 450*350mm
Panel Thickness 0.5-3.5mm
Spindle motor 0.5kW Morning Star Spindle
Tool Change Manual
Dust filtration system 3KW Vacuum Cleaner
Vision system High resolution CCD video camera
Programming Vision assisted point to point manual teaching
Editing Function Dry run vision assisted / test run mode
Machine weight 500kgs
Machine dimension 113*140*108cm
