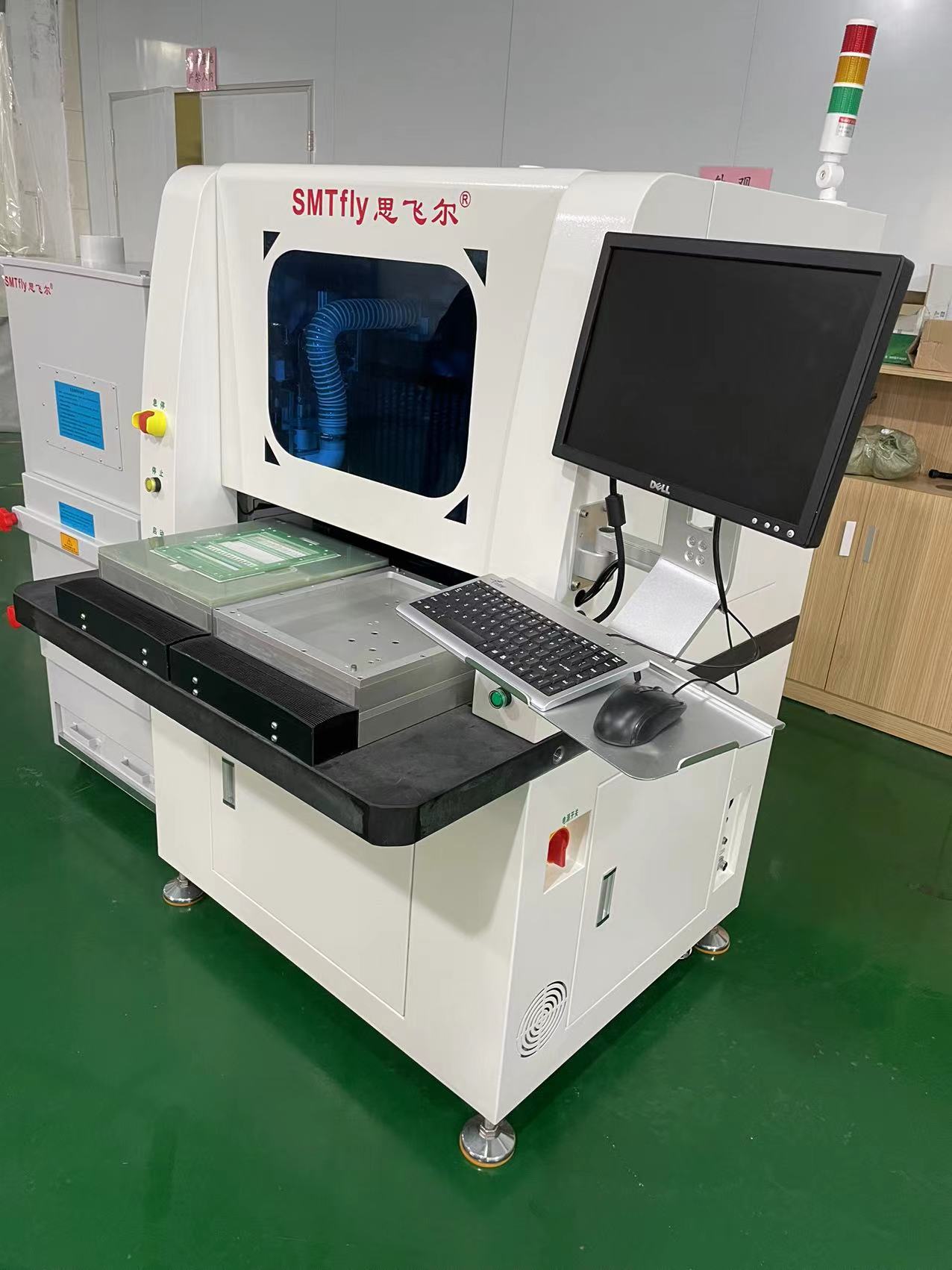

PCB Separator Router Machine,SMTfly-F01

PCB Separator Router Machine,SMTfly-F01

  • Product description: PCB Separator Router Machine,SMTfly-F01
  • INQUIRY


1. Advantages:

1. Using double slide into place device, reduce the cutting waiting times, increase production capacity.

2. Avoid artificial flap caused by the cracking of tin and part damage and other issues.

3. Avoid using blunt or fold, produced by mechanical stress.

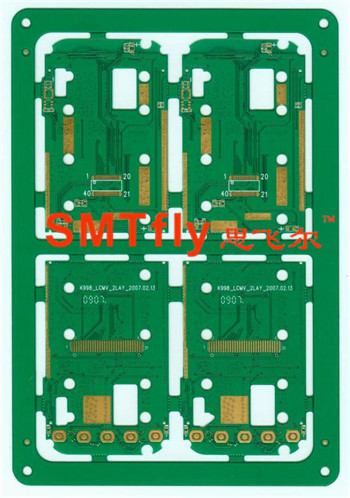

4. Suitable for the finished plate arc and line cutting.

5. Suitable for small pieces of the final cutting, base plate of a mobile phone, PDA, PC interface card and so on.

2. Feature:

1.X10 zoom-in image makes programming easier&increase the accuracy of point setting.

2.Two sliding table provides simultaneously in-and-out movement to reduce the tack time for better productivity.

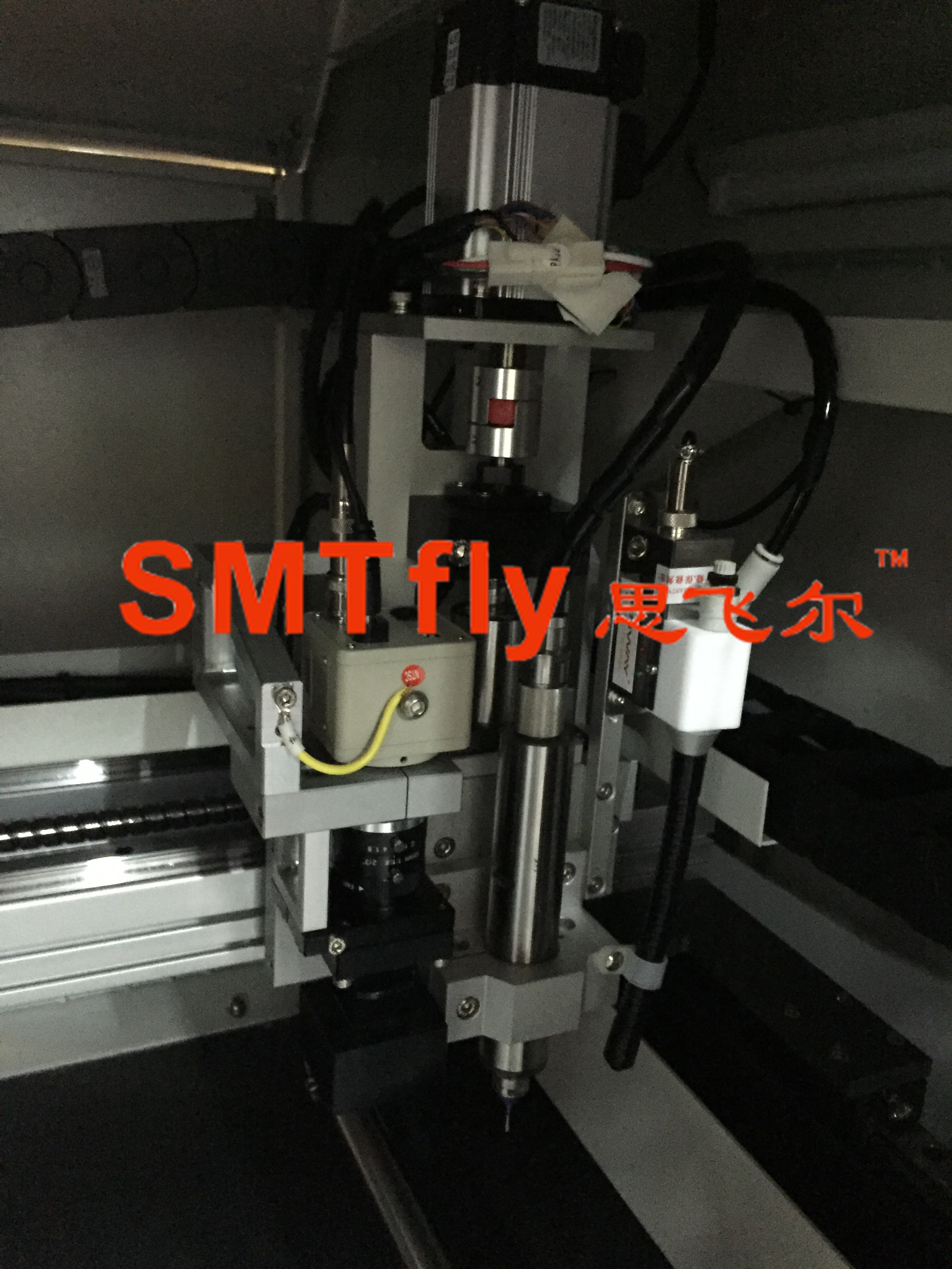

3.AUTO MARK offset system.CCD image could check&simulate the path or routing to reduce unnecessary mistake before cutting.

4. Has routing bit life time checking and alarm system to remind operator to change routing bits when it finish 120M cutting. And routing bit first 2mm cut the first miling point, middle 2mm cut the second milling point, the last 2mm cut the third milling point to increase its life time.

5. CCD image could check&simulate the path or routing to reduce unnecessary mistake before cutting.



3.Specifications:

Dimensions(W*D*H):
1220mm*1450mm*1420mm
Weight:
550KG
Height offset:
60~110mm
Motor type:
JiaBao series
Positioning repeatability:
0.001mm
Axis working area(max):
680mm*360mm*50mm
PCB fixation:
standard、specialization
PCB loading/unloading:
manual
PCB size (max):
322mm*322mm
PCB thick (max):
5mm
Rigidity fixturing:
standard
Fixturing fixation:
machinery
Power:
400W
Spindle:
50000rpm/min
Protect:
self/wind cooling
Change cutter:
Specialization
