Home > PCB separator

  • LED Strip Depaneling Equipment,SMTfly-3
LED Strip Depaneling Equipment,SMTfly-3

LED Strip Depaneling Equipment,SMTfly-3

  • Product description: LED Strip Depaneling Equipment,SMTfly-3
  • INQUIRY

Specifications

1. Max. PCB separating length is unlimted
2. Separate PCB without bending and tension stress
3. Safety use, easy operation
4. Separating process without vibrations

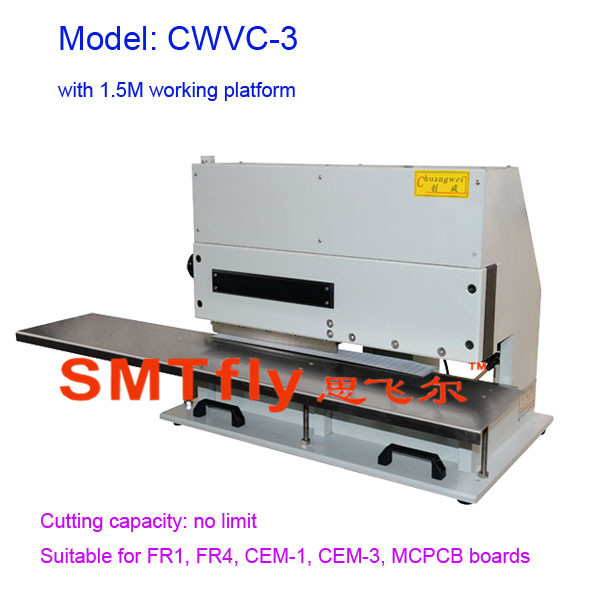

Model:
CWVC-3
The Longest Minimize:
unlimted
Size:
780mmx500mmx620mm
Minimize thickness:
0.3-3.5mm
Machine Net Weight(No table):
185  KG
The operating air pressure:
0.6Mpa ~0.8Mpa.
Voltage:
220V  or 110V




Features:

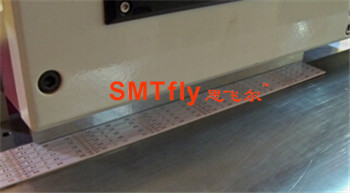

1. The machine was designed to separate pre-scored PCB carefully , without bending and tension stress .

2. Even sensitive SMD - Components like ceramic capacitors, will not be damaged by the separating process , or thin board even to 0.3mm can be worked safely .
3. Separating process without vibrations
4. PCB separating control method is by pneumatic - driven and electromagnetic valve
5. PCB separating operation is that operator stamps the foot pedal to separate PCB
6. Highest components near the v groove of PCB can be up to 50mm
7. Gap for insertion of PCB can be easy to adjust

Video:

http://www.youtube.com/watch?v=313h1CQYz9w&feature=youtu.be

http://www.youtube.com/watch?v=mCCaaT56omw&feature=youtu.be    (For 1.2 meter aluminium PCB  CWVC-3 )
