  • High Efficiency CNC Depanelizer,SMTfly-1SN
High Efficiency CNC Depanelizer,SMTfly-1SN

High Efficiency CNC Depanelizer,SMTfly-1SN

  • Product description: High Efficiency CNC Depanelizer,SMTfly-1SN
  • INQUIRY

Specification :

Separation speed:
100-220 mm/s
Cutting length:
100 mm -unlimited
Cutting thickness:
0.8-3.5mm
Cutting width:
8-225 mm
Number of blades:
max 9 pairs
Voltage :
110/220V
Machine size :
1155 x 405x330mm
Machine weight :
70 KG
Length of platform:
1150 mm (customized )

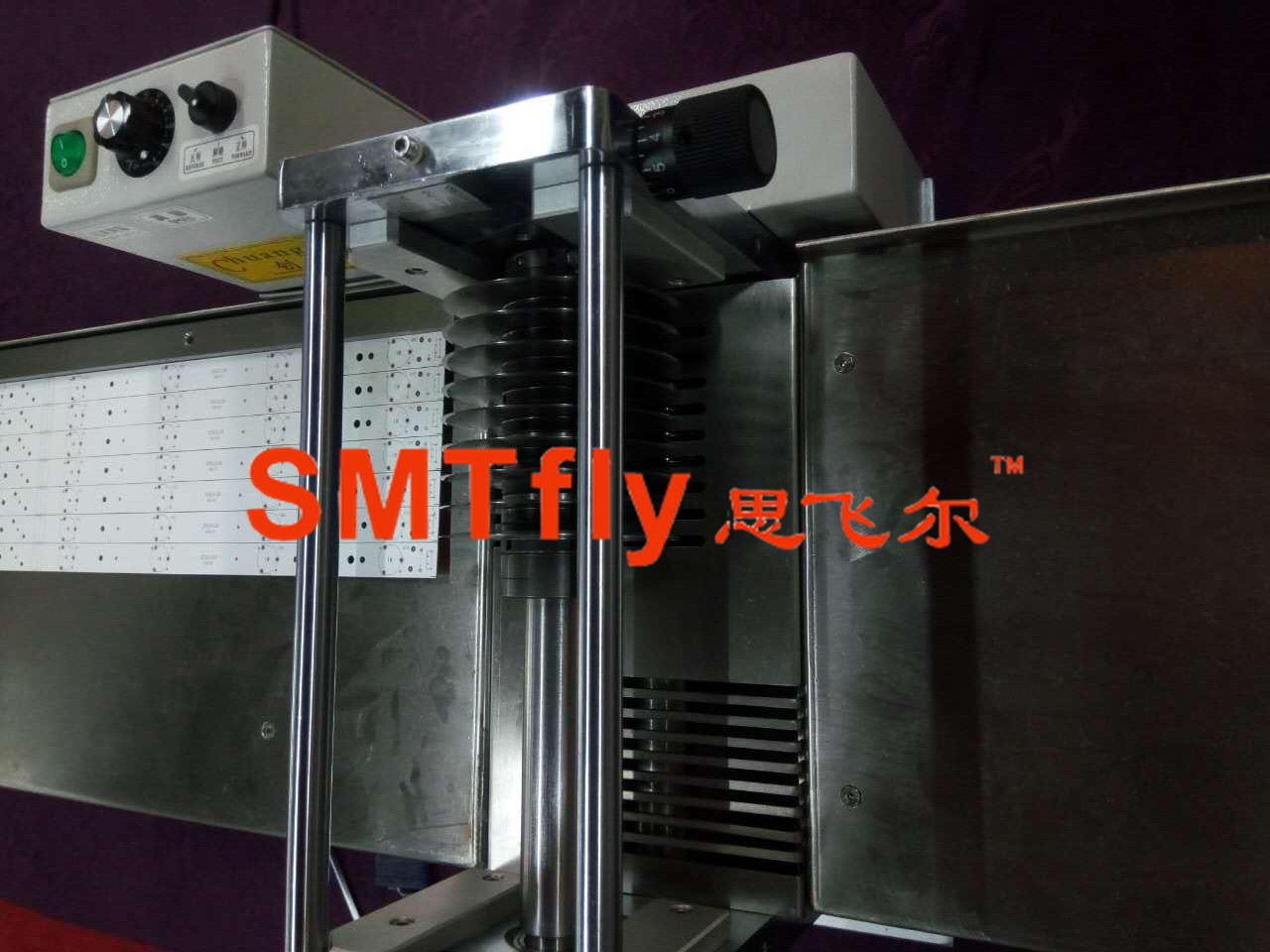

Detailed pictures





Features:

1. The machine adopts the computer screen control with a counting device, which you can use to preset the processing production. And the space of cutting tool is visible on the screen.
2. It can cut 8 pcs boards with multiple sets of knives work at the same time.
3. The knife flywheel is adjustable and distance between knives is regulable.

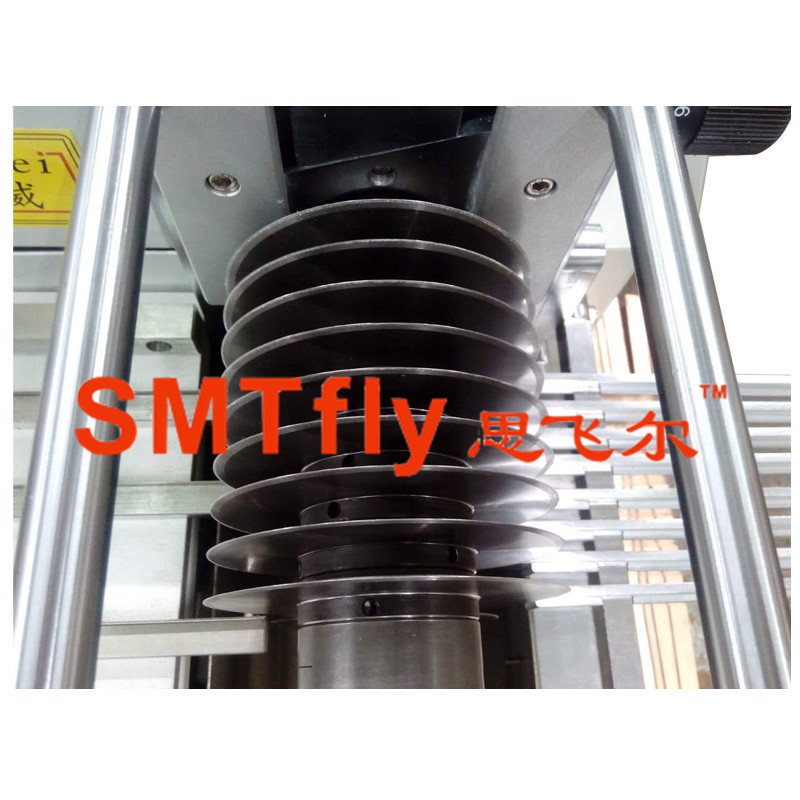

4. The blade is made of high speed steel material, which is durable and have a long service life.

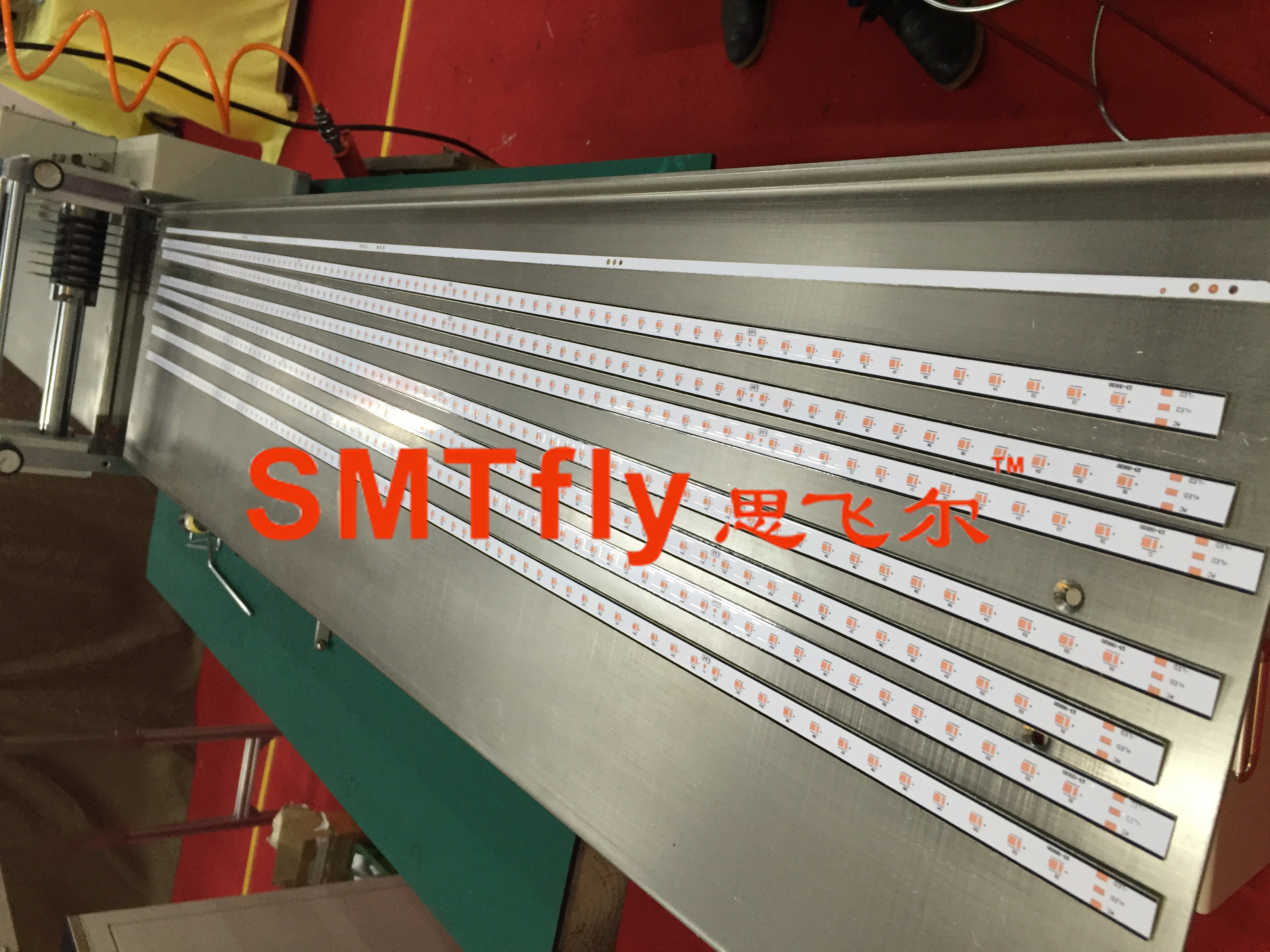

5. It is convenient to adjust the cutting speed through rotary knob With a conveyor belt line, the separated pcb can be send out directly to reduce pick- and-place.
