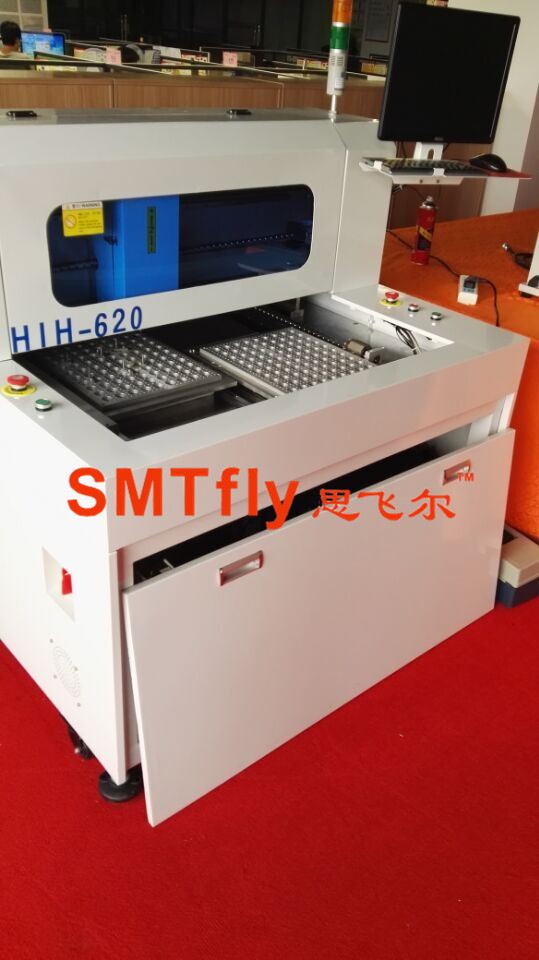

Professional PCB Router Machine,SMTfly-F01

Professional PCB Router Machine,SMTfly-F01

  • Product description: Professional PCB Router Machine,SMTfly-F01
  • INQUIRY

Specifications:

Dimensions(W*D*H):
1220mm*1450mm*1420mm
Weight:
550KG
Height offset:
60~110mm
Motor type:
JiaBao series
Positioning repeatability:
0.001mm
Axis working area(max):
680mm*360mm*50mm
PCB fixation:
standard、specialization
PCB loading/unloading:
manual
PCB size (max):
322mm*322mm
PCB thick (max):
5mm
Rigidity fixturing:
standard
Fixturing fixation:
machinery
Power:
400W
Spindle:
50000rpm/min
Protect:
self/wind cooling
Change cutter:
Specialization

PCB Routing Equipment,CW-F01PCB Routing Equipment,CW-F01


Advantages:

1.  Smooth cutting finish only by router cutting .
2.  There is little distortion on PCB during cutting because using high-frequency spindle motor . It is 1 / 10 of pressing , 1 / 100 of breaking by hand .
3. One-touch program changeover .
4.  Able to cut liner and arc with router machine , diminish the restriction on PCB design .
5.  Read QR code or JIG BIT auto select cutting program , or check accordance between cutting program and JIG .
6. Powerful Dust Collection minimized dust adhesion on PCB .
7. Developed high performance router bit that expanded bit life and relief littering .

8. Cut down PCB cost because need not making V-groove on PCB


If you want to see the video, please click here.
