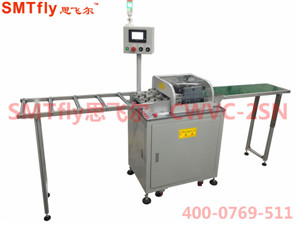

Multi-blade PCB Depaneling, SMTfly-5

Multi-blade PCB Depaneling, SMTfly-5 Features:
1.It can cut many boards with multiple sets of knives work at the same time.
2.The knife flywheel is adjustable as a whole from 0 to 5mm
3.The distance between knives is regulable as well, satisfy to cutting the single PCB width from 15mm-20mm
4.The blade is made of Japan imported high speed and high precision steel material, which is durable and have a long service life.
5.It is convenient to adjust the cutting speed through rotary knob
6. No limits of the cutting length.
7.Thickness range of PCB: 0.8-3.5mm
8. With a conveyor belt line, the separated PCB can be send out directly to reduce pick- and-place.
9.The machine adopts multiple blade to separate boards with simple operation and high efficiency.

10. It can connect the production line to separate the PCB, fitted for batch production.


Multi-blade PCB Depaneling, SMTfly-5 Specification:

Max cutting length

No limit

Min cutting length

100mm

Max cutting width

160mm

Custom cutting width

300mm

Min PCB width

8mm

PCB thickness

0.8-3.5mm

Feeding speed

0-500mm/s

Working tem.

10-35

Blade material(auto-lock function)

high precision steel

Storge tem.

-20-50

Voltage

110-220V

Dimension

2160*570*1050mm

Packaging weight

424kgs


Watch Multi-blade PCB Depaneling Video
