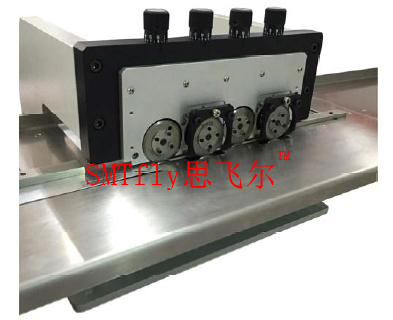

Aluminum PCB Depaneling, SMTfly-4S

Aluminum PCB Depaneling, SMTfly-4S Feature:
●Guide can be adjusted vertically to suit different LED board.
●Clearance between the circular blades can be precisely
adjusted by the knob
●Upper and lower circular blades can be reused after regrinding.
●Shape and sizes of the circular blades can be made according
to customer's specifications .
● Standard 2.4M Stainless steel platform(could be custom make)
● Lower cutting stress to improve depaneling effect

●Depaneling 2 PCBs at one time, PCB width could be adjustable from(0~12mm)



Aluminum PCB Depaneling, SMTfly-4S Specification:

Model CWVC-4S
PCB Cutting Capacity No Limit
PCB Material FR1, FR4, MCPCB
PCB Width 1-12mm
Working Mode Automatic or foot switch
Standard Platform 2.4M, could be custom made


Watch Aluminum PCB Depaneling Video
